Scope of application:

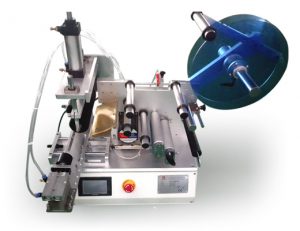

Semi-automatic flat slide labeling machine ( including display screen ) belongs to the semi-automatic labeling machine. It applies the sliding method of guide rail to label and relabel, realize labeling on the plane of various workpieces, such as cosmetic flat bottles, packaging boxes, Plastic cover labeling, etc. Changing the overwriting mechanism can be applied to the labeling of uneven surfaces, such as the labeling of flat and arc surfaces. Changing the fixture can be applied to the labeling of various irregular workpieces. Optional ribbon printer or inkjet printer to print the production date and batch number on the label to realize the integration of coding and labeling. It can be used with various packaging lines.

Features:
◆Powerful function, can be used for labeling of flat and arc surfaces of various workpieces, and can be used for labeling of irregular workpieces;

◆Accurate labeling, high stability, using PLC + subdivided stepping motor to drive label delivery, accurate label delivery; the motor drives the slide rail to label and overwrite the label to ensure that the labeling effect is free of bubbles, and the feeding mechanism is equipped with a brake function to ensure the label The tape is tightened to ensure accurate label detection; the tape circumvents the correction mechanism to prevent the label from shifting left and right;

◆Durable and durable, the circuit and the air circuit are arranged separately, and the air circuit is equipped with a purification device to prevent the moisture in the air from invading the electrical appliances and prolong the life of the equipment; the whole machine adopts high-grade aluminum alloy and stainless steel materials, and the quality is firm;

◆Easy to adjust, equipped with adjustable height and low stroke function, labeling products of different heights, no need to repeatedly replace jigs;

◆Beautiful appearance, using bottom-mounted computer white electric box, with stainless steel and high-grade aluminum alloy, beautiful and generous, and upgrade the equipment level;

◆With two labeling control methods, manual / automatic , workers can choose to use sensors or foot pedals to achieve labeling control according to their needs; manual and automatic control buttons are set, and the length of the label can be adjusted arbitrarily;

Key technical parameters:
◆Applicable label length ( mm ): 15mm～100mm
◆Applicable label width (bottom paper width /mm ): 15mm～150mm
◆Applicable product size (length×width×height / thickness): length: 20mm～200mm／ Width: 20mm～150mm / Thickness: 0.2mm～120mm
◆Applicable label roll outer diameter ( mm ): φ 340mm
◆Applicable label roll inner diameter ( mm ): φ 76mm
◆Labeling accuracy ( mm ): ± 0.5mm
◆Labeling speed ( Pcs/min ): 10-20pcs/min
◆Weight ( kg ): about 48kg
◆Frequency ( HZ): 50HZ
◆Voltage ( V ): 220V
◆Power ( W ): 400W
◆Equipment dimensions ( mm ) (length × width × height): about 850mm × 410mm × 720mm

◆Air pressure ( Mpa ): 0.4～0.6Mpa
