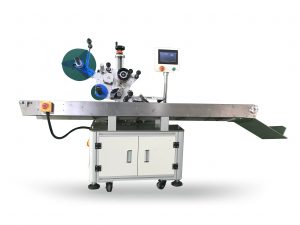

1. Basic use: It is suitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons, etc. The replacement of the labeling mechanism is suitable for labeling on uneven surfaces, and is widely used for flat labeling of large products , Labeling…
Rent: Negotiable /day
Price: Negotiable
Contact Us1. Basic use:
It is suitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons, etc. The replacement of the labeling mechanism is suitable for labeling on uneven surfaces, and is widely used for flat labeling of large products , Labeling of flat objects with a wide range of specifications.2. Product features:
◆ Wide application range, can meet the product width 30mm ~ 350mm product flat labeling and self-adhesive film, replace the labeling mechanism to meet the uneven surface labeling;
◆ High labeling accuracy, servo motor drive delivery The label is delivered accurately; the design of the label tape deflection correction mechanism ensures that the label does not deviate from left to right during the traction process; the eccentric wheel technology is applied to the traction mechanism, and the traction label does not slip to ensure the accuracy of the label;
◆Precise positioning, using belt suction Conveyor line to ensure that the product does not deviate during operation;
◆ Robust and durable: The three-bar adjustment mechanism is adopted to make full use of the stability of the triangle, and the whole machine is solid and durable;
◆ High stability: The advanced electric control system composed of PLC+touch screen+optical optics+labelled optics supports 7×24 hours operation of the equipment;
Three, configuration details
Electrical name | quantity | Model specification | Electrical name | quantity | Model specification |
Marking electric eye | 1 set | Leuze | Traction servo motor | 1 set | DELTA |
PLC | 1 set | Vigor | Traction servo drive | 1 set | DELTA |
Measure object electric eye | 1 set | RIKO | HMI | 1 set | WECON/ Vigor |
Conveying motor | 1 set | OPG | Conveyor motor speed controller | 1 set | OPG |
Labeling speed | 70-90p/min |
