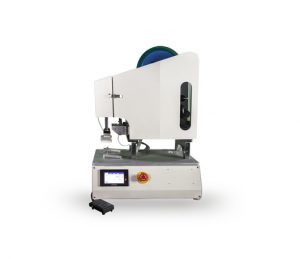

Brief introduction of high-precision semi-automatic plane labeling machine

Application scope of high-precision semi-automatic plane labeling machine :

◆Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;
◆Applicable products: products that require labels to be attached to flat, curved, circumferential, concave, convex or other surfaces;
◆Applicable industries : Widely used in cosmetics, food, toys, daily chemicals, electronics, medicine and other industries;

◆Application examples: labeling of flat shampoo bottles, labeling of packaging boxes, labeling of bottle caps, plastic shells, etc.;

Features of high-precision semi-automatic plane labeling machine :

◆ powerful, can be used for various parts of the flat, circular surface, the concave plane of labeling, can be used for labeling irregular workpiece;
◆ accurate labeling, high stability, using PLC + subdivision stepping motor drive transmission standard, The delivery of the label is accurate; the feeding mechanism is equipped with a brake function to ensure that the label is tightened and the label detection is accurate; the label is detoured and corrected to prevent the label from shifting from left to right;
◆Durable, the circuit and the air circuit are arranged separately, and the air circuit is configured Purification device prevents air moisture from invading electrical appliances and prolongs the life of the equipment; the whole machine adopts high-grade aluminum alloy and stainless steel materials, and the quality is firm;
◆Easy adjustment, equipped with adjustable height stroke function, product labeling at different heights, no need to repeatedly replace fixtures;
◆Beautiful appearance, using bottom-mounted computer white electric box, with stainless steel and high-grade aluminum alloy, beautiful and generous, and enhance the equipment level;
◆With manual/automatic two labeling control methods, workers can choose to use sensors or pedals according to their needs. Labeling control; set manual and automatic control buttons, the length of the label can be adjusted arbitrarily;
◆The high-precision semi-automatic flat labeling machine can be equipped with optional functions and components:
① hot coding/printing function;
② automatic feeding function;
③ automatic Receiving function (combined with product consideration);
④ Special label electric eye.

Technical parameters of high-precision semi-automatic plane labeling machine :

The following are the technical parameters of the standard model, and other special requirements and functions can be customized.
◆Applicable label length (mm): 5mm～65mm
◆Applicable label width (bottom paper width/mm): 5mm～65mm
◆Applicable product size (length×width×height/thickness): length: 20mm～200mm/width: 20mm～ 150mm／Thickness: 0.2mm～120mm
◆Applicable label roll outer diameter (mm): φ240mm
◆Applicable label roll inner diameter (mm): φ76mm
◆Labeling accuracy (mm): ±0.2mm
◆Labeling speed (pcs/min): 20～45pcs/min
◆Weight (kg): about 67kg
◆Frequency (HZ): 50HZ
◆Voltage (V): 220V
◆Power (W): 600W
◆Equipment dimensions (mm) (length × width × height): about 550mm×420mm×780mm

◆Air pressure (Mpa): 0.4～0.6Mpa
