1. Basic use: ◆Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.◆Applicable products: products that require labels or films to be attached to flat and large arc surfaces.◆Application industry: widely used in printing, stationery, food, daily chemical, electronics, medicine, and other industries.◆Application examples: book plane labeling, folder labeling,…
Rent: Negotiable /day
Price: Negotiable
Contact Us1. Basic use:
◆Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
◆Applicable products: products that require labels or films to be attached to flat and large arc surfaces.
◆Application industry: widely used in printing, stationery, food, daily chemical, electronics, medicine, and other industries.
◆Application examples: book plane labeling, folder labeling, packaging box labeling, envelope labeling, plate labeling, lead box labeling, stationery box labeling, PE bag labeling, PVC labeling, packaging bag labeling Labeling, notebook labeling, blood bag labeling, salt bag labeling, stainless steel tableware labeling, automatic tableware labeling, bag labeling, plastic packaging labeling, laptop battery labeling, tape labeling, tableware advertising labeling, power supply Adapter labeling, lighter labeling, etc.
2. Product features:
◆Wide range of application, can meet the product width 30mm~350mm product flat labeling and self-adhesive film, replace the labeling mechanism to meet the uneven surface labeling, the use of three labels for products requiring multiple labels greatly improves production efficiency ;
◆High labeling accuracy, subdivided stepping motor or servo motor drive to deliver the label, the label delivery is accurate; the design of the label tape deflection correction mechanism to ensure that the label does not shift from left to right during the traction process; the eccentric wheel technology is used in the traction mechanism, traction The label does not slip to ensure accurate labeling;
◆Durable and durable, adopts a three-bar adjustment mechanism to make full use of the stability of the triangle, and the whole machine is solid and durable;
◆High stability, advanced electronic control system composed of PLC+touch screen+fiber optics+label optics , Support the equipment to operate 7×24 hours;
◆Simple adjustment, design 6-degree-of-freedom adjustable adjustment seat, the conversion between different products becomes simple and time-saving;
◆The automatic flat three-label labeling machine is flexible in application and can be produced by a single machine Or connected to assembly line production, the production site layout is simple,
◆Intelligent control, automatic photoelectric tracking, with no objects and no labeling, no label automatic correction and automatic label detection functions to prevent missing labels and label waste;
◆Touch screen operation interface, all Chinese annotations and Perfect fault prompt function, simple and quick adjustment of various parameters, convenient operation;
◆Powerful function, with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient production management;
◆Automatic plane three The standard labeling machine can be equipped with optional functions and components:
①Hot coding/printing function;
②Automatic receiving function (combined with product consideration);
③Automatic feeding function (combined with product consideration);
④Add labeling device;
⑤ Other functions (customized according to customer requirements).

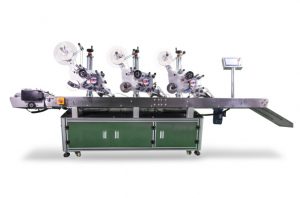

Technical parameters of automatic flat three-head labeling machine :
◆Applicable product size (length×width×height/thickness): length: 40mm~400mm/width: 40mm~350mm/thickness: 0.2mm~150mm
◆Applicable label range: label bottom paper width 20-180mm, length 20-250mm
◆ Labeling accuracy (mm): ±1mm
◆Labeling speed (pcs/min): 30~200pcs/min
◆Weight (kg): about 550kg
◆Frequency (HZ): 50HZ
◆Voltage (V): 220V
◆Power (W ): 2500W
◆Equipment dimensions (mm) (length×width×height): 3500×900×140
Three, configuration details
Electrical name | quantity | Model specification | Electrical name | quantity | Model specification |
Marking electric eye | 3 sets | Leuze | Traction motor | 3 sets | Leadshine |
PLC | 2 sets | Vigor | Traction motor driver | 3 sets | Leadshine |
Measure object electric eye | 3 sets | RIKO | HMI | 1 set | WECON/ Vigor |
Conveying motor | 1 set | OPG | Conveyor motor speed controller | 1 set | OPG |
Labeling speed | 30-150p/min | ||||
Labeling accuracy | ±1mm (excluding product and label errors) | ||||
Applicable product range | L*W*H: 40mm ~400mm*40mm~350mm*0.2mm~150mm | ||||
Applicable label range | (Label bottom paper) width 20-180mm, length 6-150mm | ||||
Operating Voltage | 220V50Hz | ||||
Dimensions | L*W*H : 3500×900×1400 |
