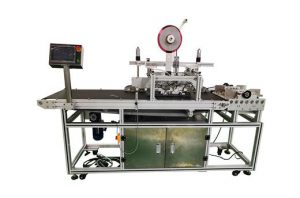

Introduction of automatic double-head double-sided adhesive labeling machine
Application scope of automatic double-head double-sided adhesive labeling machine :

◆Applicable tape: double-sided tape and high temperature adhesive tape; ◆Applicable products: L ( 100-400 ) W ( 40-250 ) H ( 0.2-2 ) MM ; ◆Application industry: widely used in medicine, food, toys, Daily chemical and other industries. ◆Application examples: paper boxes, wooden box packages, red envelopes, express orders, double-sided tape, 3M tape

Features of automatic double-head double-sided adhesive labeling machine :
◆Easy to adjust, configure front and back, left and right, and up and down directions, adapt to different glue positions and different thickness products. ◆Include automatic feeding function, which can automatically divide the thickness of the product , with suction conveying and conveying, and can make the product for lighter products. File operation ◆Touch screen control, human-computer interaction interface with operation teaching function, parameter modification is intuitive and clear, and various functions are easy to switch; ◆Intelligent control, automatic photoelectric tracking, with no objects and no labeling, ◆Sturdy and hygienic, mainly made of stainless steel and high-grade aluminum The alloy is made of solid quality and meets GMP production requirements; ◆With automatic shutdown function, production counting function, power saving function (when there is no production within the set time, the equipment will automatically switch to power saving standby state), production number setting prompt function, Parameter setting protection function (parameter setting sub-authority management), convenient for production management.

Technical parameters of automatic double-head double-sided adhesive labeling machine :
The following are the technical parameters of the standard model, and other special requirements and functions can be customized. ◆Applicable tape length ( mm ): 80mm ～290mm ◆Applicable tape width: 5 ～25mm ◆Applicable product size: L ( 100-400 ) W ( 40-250 ) H ( 0.2-2 ) MM

◆Applicable tape outer diameter ( mm ): φ 280mm
◆Applicable tape inner diameter ( mm ): φ 76mm
◆Labeling accuracy ( mm ): ± 2mm
◆Labeling speed ( pcs/min ): 25 ～50pcs/min (with product size Related to the size of the paste) ◆Frequency ( HZ ): 50HZ ◆Voltage ( V ): 220V ◆Power ( W ): 980W ◆Equipment dimensions ( mm ) (length × width × height): 2500 × 1300 × 1400

◆Air pressure ( Mpa ): 0.4-0.6
