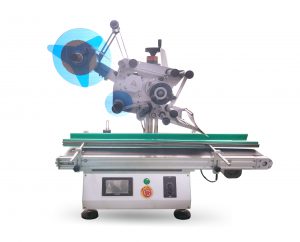

1. Basic use: It issuitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons, etc. The replacement of the labeling mechanism is suitable for labeling on uneven surfaces, and is widely used in large items. Flat labeling of products, labeling of…
Rent: Negotiable /day
Price: Negotiable
Contact Us1. Basic use: It is
suitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons, etc. The replacement of the labeling mechanism is suitable for labeling on uneven surfaces, and is widely used in large items. Flat labeling of products, labeling of flat objects with a wide range of specifications.
2. Product features:
◆ Wide application range, can meet the product width 30mm~250mm product flat labeling and self-adhesive film, replace the labeling mechanism to meet the uneven surface labeling;
◆ High labeling accuracy, step by step The label delivery is driven by a motor or servo motor, and the label delivery is accurate; the design of the label tape deflection correction mechanism ensures that the label does not deviate from the left and right during the traction process; the eccentric wheel technology is applied to the traction mechanism, and the traction label does not slip to ensure accurate label delivery;
◆ Sturdy Durable, adopting a three-bar adjustment mechanism to make full use of the stability of the triangle, the whole machine is solid and durable;
◆ High stability, advanced electronic control system composed of Fengwei PLC+ Wecon touch screen+ Panasonic/LeCroy needle-shaped electric eye + Leuze/Tiss label electric eye, supporting 7×24 hours operation of the equipment;Three, configuration details
Electrical name | quantity | Model specification | Electrical name | quantity | Model specification |
Marking electric eye | 1 set | Leuze/DataSensor | Traction motor | 1 set | Leadshine |
PLC | 1 set | Force | Traction motor driver | 1 set | Leadshine |
Measure object electric eye | 1 set | RIKO | HMI | 1 set | WECON/Vigor |
Conveying motor | 1 set | OPG | Conveyor motor speed controller | 1 set | OPG |
Labeling speed | 30-150p/min | ||||
Labeling accuracy | ± 1mm (excluding product and label errors) | ||||
Applicable product range | L*W*H:40mm~400mm*40mm~200mm*0.2mm~150mm | ||||
Applicable label range | (Label bottom paper) width 20-150mm, length 6-150mm | ||||
Operating Voltage | 220V50Hz | ||||
Dimensions | L*W*H:1000×550×1000mm |
