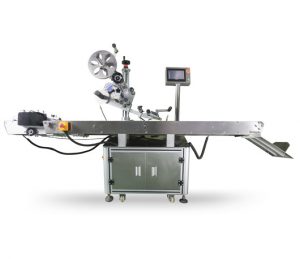

Introduction to automatic card labeling machine

Application scope of automatic card labeling machine:

• applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc;
• applicable products: products requiring labels or films on flat and large arc surfaces;
• application industry: widely used in electronics, hardware, plastic, chemical and other industries;
• application examples: cardboard labeling, acrylic film, large plastic film, ceramic film, IC card labeling, etc.

Functional features of automatic card labeling machine:

• the card sorting is stable. The advanced sorting reverse wheel technology is adopted for card sorting, and the card sorting rate is much higher than that of the general card sorting mechanism;
• the labeling speed of sub card is high, and the stable speed can reach more than 200 pieces / min for the drug box;
• it has a wide range of application, which can meet the labeling of various cards and paper pieces, and is suitable for the labeling of unfolded cartons;
• technical parameters of automatic labeling machine:

The following are the technical parameters of the standard model. Other special requirements and functions

• applicable product size (length) × wide × Height / thickness): length: 40mm ~ 280mm / width: 40mm ~ 200mm / height: 0.2mm ~ 2mm
• applicable label range: the width of label bottom paper is 20-180mm and the length is 20-250mm
• labeling accuracy (mm): ± 1mm
• labeling speed (PCS / min): 50 ~ 200pcs / min
• weight (kg): About 180kg
• frequency (Hz): 50Hz
• voltage (V): 220V
• power (W): 1170w
• overall dimension of equipment (mm) (length) × wide × Height): 2900 × nine hundred × 1400 (including card feeder and receiving tray)

[KW intelligent] it is a manufacturer of powerful automatic labeling machine, automatic labeling machine, semi-automatic labeling machine and full-automatic labeling machine, which can realize the full automation of fast labeling machine and greatly improve production efficiency.
